Aqua Color OM3 Fiber Optic Jumper Cables Pulling Type Connetors LC Duplex

  • 1
  • 2

Brand Name : New Light

Model Number : LC

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 1 roll

Price : 0.1~100

Payment Terms : T/T, Western Union, MoneyGram,paypal

Supply Ability : 1000000

Delivery Time : 7 working days

Packaging Details : export packing

connector type : LC

mode type : multi mode

cable type : OM3

cable material : PVC/LSZH

cable diameter : 2.0/3.0mm

delivery time : 2-7 working days after payment done

Warranty : 3 years after delivery

cable color : Aqua

length : can be customized

insertion loss : ≤ 0.3dB

return loss : ≥40dB

fiber count : duplex

Contact Now

aqua color OM3 fiber optic jumper cables with pulling type connetors LC duplex

Pulling type connector is a new designed products , and it received very good reputation from customers and very polular in the market .

It can help engineer to insert and pull the connector in equipments , also can help us very easy to change the old or damaged connector fron the high density equipment at data center or other place .

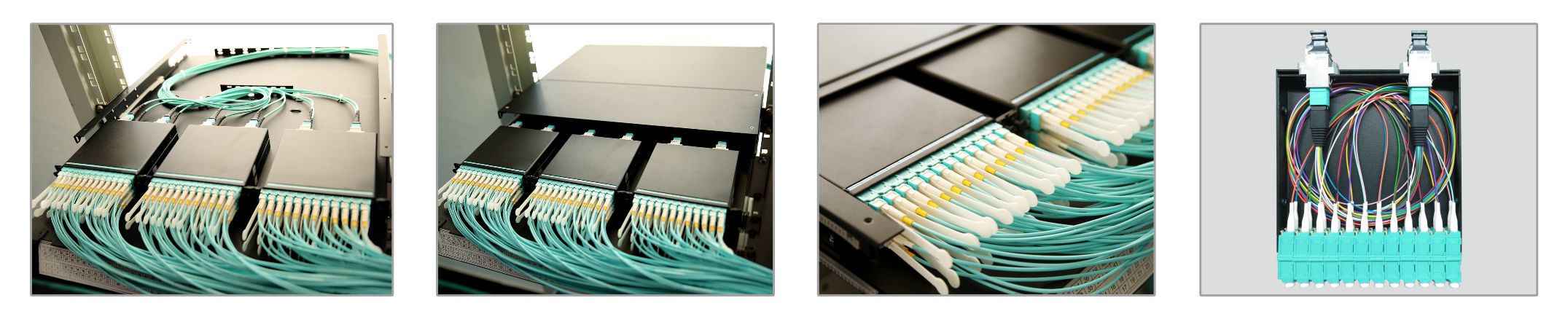

From the below picture you can see , it is a high density 144 core 1U distribution box . it is very difficult to pull one connector from it if without the pulling leg .but after use the pulling type connectors , all the problems are be to easy .

Aqua Color OM3 Fiber Optic Jumper Cables Pulling Type Connetors LC Duplex

Application

1)FTTH, LAN, PON & Optical CATV, Local ring net
2) Optical fiber communication system
3) Optical fiber test equipment
4)Optical fiber sensor
5) Industry and military application

Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥55dB ≥65dB ≥45dB
Test Wavelength 1310/1550nm 850/1310nm
Durability(500 Matings) ≤0.2dB
Operating Temperature -20℃~+70℃
Storage Temperature -40℃~+85℃
Fire Resistant IEC 60794-2-30
Standards-Compliant ROHS,IEC and GR-326
Free Sample YES
Delivery time 1days for sample, 3days for production

Fiber type Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A1,G657A2,G657B2,G657B3

Multimode:
(4)50/125-OM2
(5)62.5/125-OM1
(6)50/125-OM3
(7)50/125-OM4

(8)50/125-OM5
Fiber brand YOFC, Corning, OFS...
Connector type SC, LC, FC, ST, E2K, MU, MTRJ, MPO/MTP, SMA, DIN

Cord type Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable diameter 0.9mm, 2.0mm, 3.0mm....
Cable jacket PVC, LSZH, OFNR, OFNP
Length(M)

0.3m,1m,2m,5m,10m,25m,50m,100m ( can be customized )

How to order


1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC blue color and APC green color ) / multi mode ( PC beige color )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core /48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirements

Connector type :

Aqua Color OM3 Fiber Optic Jumper Cables Pulling Type Connetors LC Duplex
